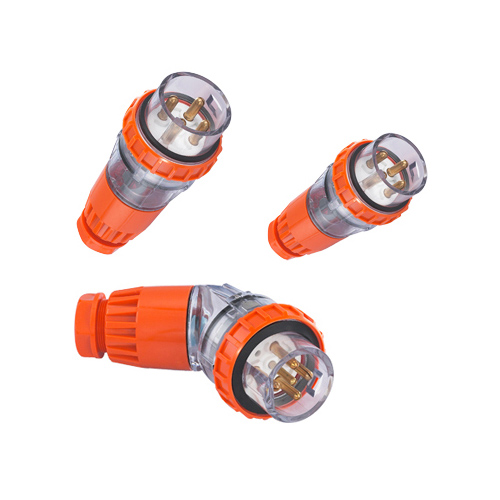

catalogue number(angled)
catalogue number (straight) |
56p
416
56pa
416 |
56p
416k
56pa
416k |
56p
420
56pa
420 |
56p
432
56pa
432 |
56p
432RF
56pa
432RF |
56p
435
56pa
435 |
56p
440
56pa
440 |
56p
450
56pa
450 |
56p
516
56pa
516 |
56p
520
56pa
520 |
56p
532
56pa
532 |
56p
535
56pa
535 |
56p
540
56pa
540 |
56p
550
56pa
550 |
56p
616
56pa
616 |
56p
716
56pa
716 |
56p
720
56pa
720 |
|
rated operational voltage ue(-50HZ) |
volts |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|
max thermal current endclosed |
amps |
16 |
16 |
20 |
32 |
32 |
35 |
40 |
50 |
16 |
20 |
32 |
35 |
40 |
50 |
16 |
16 |
20 |
|
number of pins(including earth) |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
5 |
5 |
5 |
5 |
5 |
5 |
6 |
7 |
7 |
|
pin configuration |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
cable entry diameter |
min
max |
7
16 |
7
16 |
7
16 |
10
27 |
10
27 |
10
27 |
10
27 |
10
27 |
7
16 |
7
16 |
10
27 |
10
27 |
10
27 |
10
27 |
7
16 |
7
16 |
7
16 |
|
terminal capacity mm2 |
min
max |
1
6 |
1
6 |
1
6 |
2.5
16 |
2.5
16 |
2.5
16 |
2.5
16 |
4
16 |
1
16 |
1
16 |
2.5
16 |
2.5
16 |
2.5
16 |
4
16 |
1
16 |
1
16 |
1
16 |
|
auciliary pins c1-c2 maximum current |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10A |
10A |
10A |
